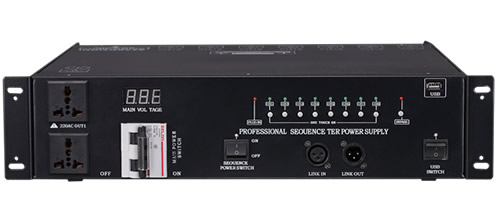

1016i X 带滤波16路
| Product parameter model:1016iX factory are all after aging for 48 hours | ||||||
| *.适用范围：娱乐工程系列、演出工程系列、会议工程系列(可带6~7台1000W~1500W功放)。可选配USB线连接电脑控制功能。 | ||||||
| Scope of application: entertainment project series, performance engineering series, Engineering Conference Series (with 6~7 1000W~1500W power amplifier). The optional USB lines connected to the computer control function. | ||||||
|
最大输入电流
max supply current |
80A | |||||
|
单路最大输出电流
Single maximum output current |
30A | |||||
|
工作电压
Working voltage |
220V/50-60Hz | |||||
|
每一路功率
Each power |
可达3000W，（演出工程和会议工程系列专用设备）
Every road leading directly to the 3000W（Perform engineering and engineering conference series of special equipment） |
|||||
|
输入与输出电压
The input and output voltage |
380V输入=220V输出 （下订单前请说明，可选配电压：110V输入=110V输出，380V输入=220V输出）
380V input =220V output (Please indicate the order，optional voltage: 110V input =110V output, 380V input =220V output) |
|||||
|

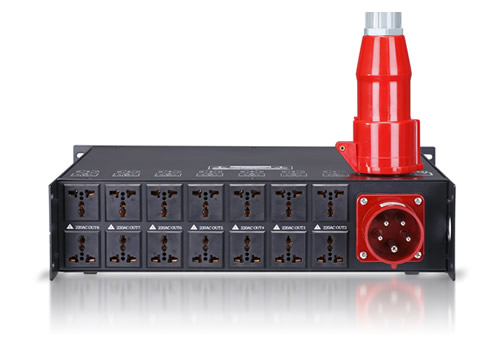

输出电源插座
Output power supply socket |
万用插座，符合欧美标准。1按钮控制2路，上下两路为1组，16个受控万用插，（面板前面2路可做直通，下单时请说明）
Universal socket, in line with European standards. The 1 button control 2 Road, upper and lower two into 1 groups, 16 controlled universal socket, (front panel 2 road to do straight place an order, please explain) |
|||||
|
插座材质
The socket material |
每个插座材质磷铜，均通过检验才安装 Each of the socket material copper, each socket all through the inspection before installation | |||||
|
每一路开关间隔时间
Each switch with interval time |
1秒 ，每2通道带开关指示灯1个,后端配置一个保险开关按钮（BYPASS）旁路功能
Each switching interval is one second, each switch with indicating lamp, a switch button in the back-end (BYPASS) |
|||||
| 继电器Relay |
宁波松乐牌(原厂正品)
Ningbo Songle brand (the original authentic) |
|||||
|
电路板线路
The power supply circuit board line |
采用60%高纯度锡，高端分流技术,经强化加粗处理 The 60% high purity tin, high-end streaming technology, through enhancing the bold treatment |
|||||
|
变压器
Relay |
A&C原厂正品
A&C original authentic |
|||||
|
内置电源线
The built-in cable |
内置线材每路2.5平方，连接外线内置10平方线材,（本厂不提供外接电缆线，按实际工程需求自配）
The built-in cable to the relay at each of 2.5 square meters, 10 square meters built connecting the output cable (the factory does not provide external cable, according to the actual engineering requirements with) |
|||||
|
电压显示表
Voltage meter |
二极管 数字显示电压表
LED digital display voltmeter |
|||||
|
机箱高度
Chassis height |
2U （符合机柜按照标准）
2U (with the case in accordance with the standard) |
|||||
|
开关
Switch button |
德力西牌 80A 空气开关
Delixi brand 80A air switch |
|||||
|
照明配置
Lighting port configuration |
配置一个USB照明灯接口
Configure a USB lamp interface |
|||||
|
受控功能
Control function |
有,(每通道可以单独受控)其中每一路按钮控制上下2通道，16个受控万用插
Yes, (each button can be controlled separately), 2 channel button for each control, a total of 16 wildcard socket |
|||||
|
联机支持
Connect the machine support button |
有,(可支持8台设备同时联机使用)联机端口：卡隆端口
Yes, (can support 8 devices at the same time connection using the connection device port):Caron port |
|||||
|
电压配置 Voltage configuration |
5芯公插，三相五线制，380V进，220V出
5 core male plug, three-phase five wire system, input output: 380V,: 220V |
|||||
| 滤波器Current noise filter |
进口 KMX 专业滤波器。
Import KMX professional filter |
|||||
