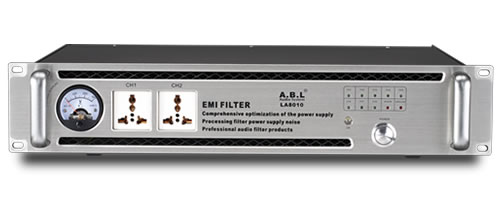

LA-8010 10路EMI滤波电源时序器
| 1.产品参数型号：LA-8010 出厂前均经过48小时的老化处理 | ||||||||
| Product parameter model: la 8013, the factory have to undergo intensive treatment for 48 hours | ||||||||
| *.适用范围：娱乐工程系列，(可带4~5台1000W~1500W功放)。民用系列：可选配10米远距离遥控器。 | ||||||||
| Scope of application: entertainment project series, (can use about 3~4 1000W~1500W power amplifier equipment). Civilian series: optional 10 meters distance to the remote parts | ||||||||
| 最大输入电流max supply current | 80 A | |||||||
| 单路最大输出电流Single maximum output current | 30A | |||||||
| 工作电压Working voltage | 220V/50-60Hz | |||||||
| 每一路功率Each power | 可达3000W WEach power up: 3000W | |||||||
| 输入与输出电压The input and output voltage | AC输入电压=AC输出电压 （下订单前请说明，可选配电压：110V输入=110V输出） AC input voltage, =AC output voltage (Please indicate the order，optional voltage: 110V input =110V output) | |||||||
| 输出电源插座Output power supply socket | 万用插座,符合欧美标准。后面板8个受控万用插座 Universal socket, in line with European standards. Behind the panel 8 controlled universal socket | |||||||
| 插座材质 The socket material | 每个插座材质磷铜，均通过检验才安装 Each of the socket material copper, each socket all through the inspection before installation | |||||||
| 每一路开关间隔时间Each switch with interval time | 1秒 ，每一路带开关指示灯,前端配置一个保险开关按钮（BYPASS） Each switching interval for one second, each switch with indicating lamp at the front of the machine, a round hole for labor safety switch button (BYPASS) | |||||||
| 继电器Relay | 宁波松乐牌(原厂正品) Ningbo Songle brand (the original authentic) | |||||||
| 电路板线路The power supply circuit board line | 采用60%高纯度锡，高端分流技术,经强化加粗处理 The 60% high purity tin, high-end streaming technology, through enhancing the bold treatment | |||||||
| 变压器Transformer | A&C原厂正品 A&C original authentic | |||||||
| 电源线Power cable wire | 3*6平方的电缆线，电缆线配置长度为1.5米 Cable 3*6 square meters，Cable configuration is 1.5 meters in length | |||||||
| 机箱高度Chassis height | 2U（符合机柜按照标准） 1U (with the case in accordance with the standard) | |||||||
| 开关 Switch button | 直键开关 The boat shaped switch button | |||||||
| 单路受控功能 Each controlled function | 没有 NO. | |||||||
| 遥控功能 Remote control function | 可选配，遥控器距离范围10米，（没遮挡物范围15米） Optional, remote control distance of 10 meters, (not covering a range of 15 meters) | |||||||
| 联机支持 Connect the machine support button | 没有 NO. | |||||||
| 电压显示表 Voltage meter | 航海机械电压表 | |||||||
| 滤波器Current noise filter | KMI EMI 专业电网滤波器 可承载 50A 电流的军工设备 The built-in capacitor filter | |||||||
全国统一零售价：7000 RMB
